Observation of Genuine High-dimensional Multi-partite Non-locality in Entangled Photon States

SJ_Zhang
Jun. 16, 2025

Abstract

Quantum information science has leaped forward with the exploration of high-dimensional quantum systems, offering greater potential than traditional qubits in quantum communication and quantum computing. To advance the field of high-dimensional quantum technology, a significant effort is underway to progressively enhance the entanglement dimension between two particles. An alternative effective strategy involves not only increasing the dimensionality but also expanding the number of particles that are entangled. We present an experimental study demonstrating multi-partite quantum non-locality beyond qubit constraints, thus moving into the realm of strongly entangled high-dimensional multi-particle quantum systems. In the experiment, quantum states were encoded in the path degree of freedom (DoF) and controlled via polarization, enabling efficient operations in a two-dimensional plane to prepare three- and four-particle Greenberger-Horne-Zeilinger (GHZ) states in three-level systems. Our experimental results reveal ways in which high-dimensional systems can surpass qubits in terms of violating local-hidden-variable theories. Our realization of multiple complex and high-quality entanglement technologies is an important primary step for more complex quantum computing and communication protocols.

Introduction

Two-level quantum systems, known as qubits, predominantly serve as the fundamental unit of quantum information processing. A single qubit already reveals fundamental quantum principles, such as superposition and limitations on copying (i.e. no-cloning)¹, which propel applications in quantum cryptography². However, by increasing the number of levels in the system, i.e. the dimension, and the number of particles in the system, a lot of new physics and applications emerge.

Quantum particles with dimensions greater than two reveal new physical phenomena and applications, such as quantum contextuality³ and noise-resistance quantum key distribution⁴. Similarly, systems involving two particles lead to fundamental concepts such as entanglement⁵ and the device-independent framework for quantum information processing⁶. Progressing to a system of three or more particles has led to stronger forms of entanglement⁷, which has catalyzed the advent of quantum teleportation⁸ and quantum computing⁹. Systems that feature both a higher dimension and many particles lead to a more complex landscape of entanglement^10,11, generate new non-local models^12,13 and implement efficient quantum information tasks^14,15.

Most studies on multi-qubit systems focus on increasing the number of entangled particles among which photons, ion traps, and superconducting circuits have achieved genuine multi-particle entanglement between 12¹⁶, 32¹⁷, and 51¹⁸ qubits, respectively. With the breakthroughs of experimental technology, the non-locality of multi-particle qubit systems has been observed in different systems^19,20,21.

In recent years, there has been a growing recognition of the important role that high-dimensional quantum states play in probing the depths of fundamental physics and advancing quantum information applications^22,23. High-dimensional quantum systems have a larger information capacity²⁴, better noise resistance for quantum information tasks^25,26 and they simplify the complexity of quantum computing^14,27,28,29. Quantum non-locality in high-dimensional multi-particle systems is a natural endeavour. However, no high-dimensional multi-partite non-locality has been observed in experiments.

The difficulty is due to a combination of theoretical and technological challenges. In contrast to weaker forms of quantum correlations, genuine high-dimensional multi-partite non-locality is particularly challenging to characterize^30,31. The challenge stems from the ambition to show that no quantum experiment based on multi-qubit states can account for the observed phenomena. Detection criteria must resolve this while simultaneously allowing for a significant level of noise resistance. The latter is crucial, because high-dimensional multi-particle entanglement requires complex setups and it is difficult to prepare the most interesting states, such as GHZ states, at high fidelity. The challenge of preparing GHZ states of high quality is reflected in previous experiments where the fidelity was sufficient to witness entanglement but not to detect non-locality^32,33,34.

Here, as illustrated in Fig. 1, we leverage the concept of path identity to encode quantum states into the path DoF. By utilizing polarization to control path exchanges, we experimentally achieve the preparation of high-fidelity, high-dimensional multi-partite entangled photons (details see Section 8 in the SM). We report on the observation of entanglement that is strong enough to exhibit genuine high-dimensional multi-particle non-locality through the explicit violation of Bell-type inequalities.

Fig. 1: Three-dimensional three-particle GHZ state by Path Identity.

Following the Path Identity scheme⁴⁵, we use path exchange to achieve the preparation of high-dimensional GHZ states. Each box means a crystal generates one pair of photons. There are four photons in total, labeled by a to d. The digital numbers 0 to 2 are the paths. By exchanging the photons b, c, and d, the three-dimensional four-particle GHZ state can be generated if four detectors (D1–D4) click simultaneously. By projecting photon a as a trigger onto the (|0⟩+|1⟩+|2⟩)/3 basis, we obtain the three-dimensional three-photon GHZ state. Then three photons are distributed to Alice, Bob, and Charlie, they randomly select the measurement basis (x, y, z) and obtain the results (a₀, a₁, a₂. . . c₀, c₁, c₂) to test the genuine high-dimensional multi-partite non-locality.

Results

Compared to multi-qubit states, the structure of high-dimensional multi-particle quantum states is more complex. Combining high-dimensionality with many particles can, for instance, be revealed by a notion of dimensionality vector¹⁰. The smallest element of this vector can be interpreted as the genuine multi-partite entanglement dimension; representing the highest necessary dimensionality cost if the state were to be generated using only bipartite entanglement sources¹¹. The quality of multi-particle entanglement can, in principle, be benchmarked through fidelity measurements^11,35,36. However, this faces the obstacle that implementations typically have low count rates, which makes it resource-intensive to collect a large amount of statistics on many different bases. Therefore, one typically tries to use as few bases as possible, such as only two mutually unbiased bases for all parties³⁶. We employ a recent improvement of such witnesses, also using only two global product basis measurements to bound the fidelity¹¹ and thus also the genuine multi-partite entanglement dimension. Moreover, we propose Bell-type inequalities for witnessing high-dimensional non-locality for three qutrits. The violation of these inequalities excludes not only local hidden variables but also quantum non-locality based on arbitrary qubit systems and non-locality based on systems where some particles are qubits and others are qutrits. These tests pave the way for practically viable device-independent tests of entanglement dimensionality in multipartite systems.

Entanglement detection via efficient fidelity estimation

The standard method for verifying that a multi-particle state is fully entangled is to prove that it exhibits genuine multi-partite entanglement (GME); see e.g.^{16,22,37,38,39,40,41}. A state is called GME if it cannot be recreated by classically mixing states that are separable with respect to some bipartition of the set of particles. However, when the photons have more than two DoFs, it is important to also verify that the state is genuinely high-dimensional, i.e. that it does not permit a representation using only lower-dimensional (qubit) states. Formally, this means that Schmidt rank across all partitions is larger than two, for every possible decomposition of the density matrix^10,22. While a daunting task to prove in general, a simple criterion for an n-partite state, ρ, being both genuinely three-dimensional and GME is that its fidelity with an ideal n-photon three-dimensional GHZ state |GHZ?,3⟩:=13(∑?|?⟩⊗?) exceeds the following limitation^11,42,

As later discussed, we can efficiently test this criterion in our experiments using a three-photon GHZ state.

However, measuring the fidelity becomes significantly more demanding for a larger number of high-dimensional photons due to an increased number of measurements. To overcome this, one can use a weaker but less resource-costly criterion, which uses only two complementary basis measurements. Such criteria are tailored for high-quality sources in the sense that they perform well if the experiment can generate a state close to the perfect GHZ state. Specifically, let ?={|?⟩} be the computational basis and ?={|??⟩} be a complementary basis, obtained by a Fourier transform of the computational basis. Consider now that all n photons are measured in the former basis and the measurement is considered successful if all outcomes are identical. The probability of success is called ?(identical|?). Next, we measure all photons in the complementary basis and consider it successful if the outcomes sum to zero modulo the dimension, three. We denote that probability ?(sum−zero|?). ref. ¹¹ shows that a state is three-dimensionally GME if it violates the condition

and that it implies the fidelity bound F_GHZ≥ W − 1. One can verify that a perfect three-dimensional GHZ state achieves the violation W = 2, thus corresponding to a perfect fidelity. For example, assume that the state generated in the experiment is a mixture of the GHZ state and isotropic noise. In our systems, we have n = 4 particles of dimension d = 3. A successful detection of three-dimensional GME requires a GHZ state visibility of at least 79.5%.

Multi-partite high-dimensional non-locality

Consider a three-partite state distributed between Alice, Bob and Charlie. They independently select one of three possible measurements and perform them on their share of the state, each yielding one of three possible outcomes. For this three-party, three-input, three-output Bell scenario, ref. ¹² developed a Bell inequality which can be maximally violated by basis measurements on a three-dimensional GHZ state. However, a Bell inequality violation does not necessarily imply that the non-locality must occur between three three-dimensional systems; the violation may be possible using already three-qubit entanglement.

Using the techniques of³⁰, we have determined bounds for the Bell test parameter when the dimensionality of the first, second and third particle is, respectively, (d_A, d_B, d_C). Our bounds take the form of a chain of inequalities,

Here, ? is the Bell test parameter measured in the experiment. The first bound (LHV) is the standard Bell inequality from ref. ¹². We see that a significant portion of the quantum non-locality can be modeled by systems of only qubits. We also see that stronger violations can be attributed to systems of two qubits and one qutrit and one qubit and two qutrits, respectively. We remark that ? is symmetric under party permutation, and therefore, the bounds apply for any permutation of the tuple (d_A, d_B, d_C). A three-qutrit GHZ state achieves the maximal value, ?=9. The bounds are tight up to several decimal points (not shown in Eq. (3)). Details on both the specific construction of ? and the derivation of the bounds are given in Section 6 of the Supplementary Materials (SM).

We aim to violate these Bell-type inequalities and thereby demonstrate genuine high-dimensional multi-particle non-locality. However, this requires high fidelity in the state generation. Considering again the noise model in which the experiments generate a mixture of a GHZ state and isotropic noise, the critical visibility of the GHZ state for achieving the chain of violations becomes v_LHV = 0.66, v₂₂₂ = 0.74, v₂₂₃ = 0.76 and v₂₃₃= 0.87. We see that the task is particularly demanding for falsifying quantum non-local models based on one qubit and two qutrits. In our experiment, we report on violating all these inequalities using three-photon qutrit GHZ states.

Finite count analysis

The probabilities entering into the tests of entanglement and nonlocality described in Eqs. (1), (2) and (3) cannot be precisely determined by experiments with finite count statistics. They can only be estimated as relative frequencies up to a confidence that depends on the number of times a measurement is performed, N. Since this is an important practical limitation, it is relevant to determine the confidence with which these tests can be violated for realistic values of N. This discussion is detailed in Section 7 in the SM. There, Chernoff’s bound^43,44 is used to bound the N needed to ensure that at least a given confidence is obtained for an experimental violation of the inequality based on relative frequencies. Representing the confidence in terms of the p-value, this bound takes the form

where ?? is the inequality bound to violate for entanglement and non-locality detection, Δexp is the violation measured in the lab and ???(??+Δexp||??) is the Kullback-Leibler divergence. The main feature here is that if the observed violation magnitude Δexp is large, then high confidence is already implied by reasonably small N. Such large violations are associated with high-quality entanglement and nonlocality certificates.

Experimental three-dimensional four-photon GHZ entanglement

The preparation of high-dimensional multi-photon entangled states has long been a challenge due to their complex structures and lack of a universal experimental preparation scheme. In our experiment, we used narrowband filtering to achieve high visibility interference between high-dimensional entangled photon pairs combined with a path exchange method of polarization-path coupling, to efficiently prepare a four-photon three-dimensional GHZ state using the path identity scheme⁴⁵. The path of photons can, in principle, encode infinite-dimensional quantum information. For a three-dimensional four-photon GHZ state, it can be written as:

where 0–2 are the possible paths and a to d are the photons. As shown in Fig. 1, our experiment on a three-dimensional four-photon GHZ state was implemented with two steps: Photon pairs preparation and path exchange, shown in Fig. 2a, b respectively.

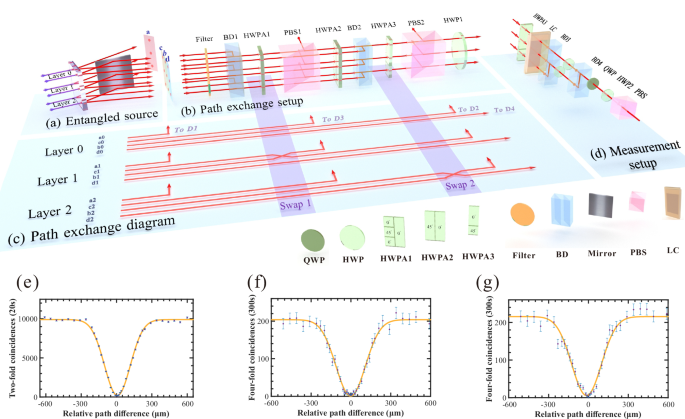

Fig. 2: Schematic diagram of high-dimensional multi-photon GHZ state generation.

a Schematic diagram of entanglement source. The ultrafast pulsed laser (@775 nm) with a repetition rate of 76 MHz is evenly split into 6 beams (3 × 2 arrays) to pump the type-II barium borate (BBO) crystal, and generated 2 pairs of 3-dimensional entangled photons ((|00⟩+|11⟩+|22⟩)/3)⊗2, labeled by a, b, c and d respectively. We use a 5 cm × 5 cm mirror to reflect the photon c, which is parallel to photons b and d. These photons are set equidistant by 4 mm apart. b Experimental setup of Photon exchange. By changing the angles of HWPAs (1–3), we can achieve the exchange of paths b and c in layer 1 and paths b and d in layer 2. The PBSs (1–2) are used to separate four photons into four different paths. Therefore, the three-dimensional four-photon GHZ state is created. It is worth noting that in order to ensure that the photons participating in path exchange have better indistinguishability, we used a 3 nm filter at the beginning. c Path exchange scheme. By exchanging path |?1⟩ and path |?1⟩ in layer 1, and path |?2⟩ and path |?2⟩ in layer 2, we can get the same structure as the path identity scheme in Fig. 1. d Measurement setup. Any projective measurement can be performed by setting the HWPs, QWP, and a liquid crystal (LC) for each party. e–g Test of indistinguishability between different spontaneous parametric down-conversion (SPDC) photons. The Hong-Ou-Mandel (HOM) interference results of photon cd, bd and bc were shown in (e–g), and observed HOM visibility of 0.981 ± 0.001, 0.996 ± 0.004 and 0.974 ± 0.008, respectively.

The core idea of the path identity scheme is to achieve the preparation of high-dimensional multi-photon quantum states through indistinguishable photon path exchanging. Good indistinguishability of photons is a prerequisite for achieving high-fidelity quantum state preparation. In our experiment, a pulsed laser beam with an average power of ~1.7 W, a central wavelength of 775 nm, and a repetition rate of 76 MHz is split into six beams (3 × 2 array) to pump the type-II barium borate (BBO) crystals with a thickness of 6.3 mm, and the beams of each vertical layer are labeled as layers 0, 1, 2, which represent different spatial modes. Due to the difference in collection efficiencies, we balance the power of each pump beam, ensuring equal count rates for each source. Then, through spontaneous parametric down-conversion (SPDC), 2 pairs of 3-dimensional entangled photons ((|00⟩+|11⟩+|22⟩)/3)⊗2 are generated, labeled by a, b, c and d respectively (details see Section 2 in the SM). The experiment’s high-performance light source ensures excellent photon indistinguishability between different paths. To ensure the indistinguishability of the four photons, we used a 3 nm filter to filter the three photons b, c, and d. The visibility of Hong-Ou-Mandel (HOM) interference between the three photons was 0.981 ± 0.001 (cd), 0.996 ± 0.004 (bd) and 0.974 ± 0.008 (bc), respectively. The excellent indistinguishability ensures that we have prepared high-dimensional multi-photon entangled states with high fidelity.

In our scheme, one can simply see the processes in Fig. 2c; we only need to do two path exchanges; path b1 and c1 are exchanged in layer 1, while path b2 and d2 are exchanged in layer 2. Afterwards, if we choose to observe D1-4 coincidence, we can obtain four qutrit quantum states.

For exchanging photon paths, we use polarization devices to control the polarization and path DoFs of photons. This method is efficient, stable, and very suitable for the preparation of high-dimensional multi-photon entangled states that require long-term phase stability. As shown in Fig. 2a, we use a 5 cm × 5 cm mirror to reflect photon c such that it is parallel to photons b (d) at a distance of 4 mm (8 mm). In Fig. 2b path exchange setup, we first use a 3 nm narrow-band filter to increase the coherence length of the photons further.

In our experiment, we achieve path exchange by continuously converting the polarization and path DoFs of photons. As shown in Fig. 2b, BD1 combines the photons in path c with photons in path b through polarization merging. The HWP array (HWPA1) is used to achieve second-layer photon polarization exchange in the b path. The photons in H polarization in paths b and c pass through PBS1, while the photons in V polarization reflect and reach D3. At this point, we have achieved the exchange of photons in paths b and c in layer 1. Then, BD1 is used to combine the photons in path d with photons in path b through polarization merging. The HWP3 is used to achieve layer 2 photon polarization exchange in the b path. Finally, we separated H-polarized photons and V-polarized photons through PBS2 and reached D2 and D4, respectively, achieving exchange on layer 2 along the b and d paths. If we label three layers as |0⟩, |1⟩, and |2⟩ we then obtain a three-dimensional four-photon GHZ state (5). As shown in Fig. 2d, any projective measurement can be implemented by adjusting HWPs, QWPs, and LCs in our experiment (details see Section 2 in the SM).

At the same time, our experimental techniques can be easily extended to other graph states based on path identity schemes^46,47 and further enhanced by leveraging the recently developed concept of spatial overlap among identical particles^48,49,50. This approach can be generalized to the linear graph method for efficient scalability^51,52.

Three qutrit GME witness

We use the previously described efficient fidelity witness (2) to verify that our quantum state is genuinely high-dimensional and genuinely multi-photon entangled. We performed measurements of all photons in the computational basis (?) and Fourier basis (?), respectively. This represents a distinct advantage already for three qutrits; tomography would require 1728 projection measurements whereas our witness requires only 3³ × 2 = 54 projective measurements. Integrating for 200 seconds for each projection, a total of 1142 counts is recorded. We obtain the maximum violation of ?3??????=1.849±0.016>53, which is sufficient to observe the genuine three-dimensional three-photon entanglement with a p value of order 10⁻¹⁸ according to (4). The associated lower bound on the three-qutrit GHZ-state fidelity is 0.849 ± 0.016. To confirm the accuracy of our fidelity estimation, we used subspace measurement methods to accurately estimate the three-particle qutrit state³². To calculate F_exp, it is sufficient to measure the 32 diagonal and 6 unique real parts of off-diagonal elements of ρ_exp (details see Section 1 in the SM). The four-fold coincidence rate here is about ~1.1 Hz, and the integration time of each measurement setting is 1000 s. From the experimental data, F_exp is calculated to be 0.910 ± 0.006, which is above the bound of F_(3, 3, 2) = 0.667 by 40.5 standard deviations. The high fidelity proves that the quantum states we prepare can be used for tasks such as quantum secret sharing⁵³ and distributed quantum sensing⁵⁴ in the future.

Four qutrit GME witness

For the case of four qutrits, the efficient witness requires a total of 3⁴ × 2 = 162 projective measurements, which can be compared to 20,736 measurements for tomography, or even 324 for complete fidelity measurements. For each measurement basis, we integrated for 1000 seconds, which led to a total of 2404 counts recorded for all measurements. We obtain the maximum violation of ?4??????=1.841±0.029>53. Notably, for this violation, total counts N ? 300 would already be enough to get a p value of order 10⁻⁵. Our total counts lead to a p value ≤ 10⁻¹⁷. The associated four-qutrit GHZ fidelity is then lower bounded by 0.841 ± 0.029. The experimental result and its genuinely three-dimensional entanglement properties are illustrated in Fig. 3.

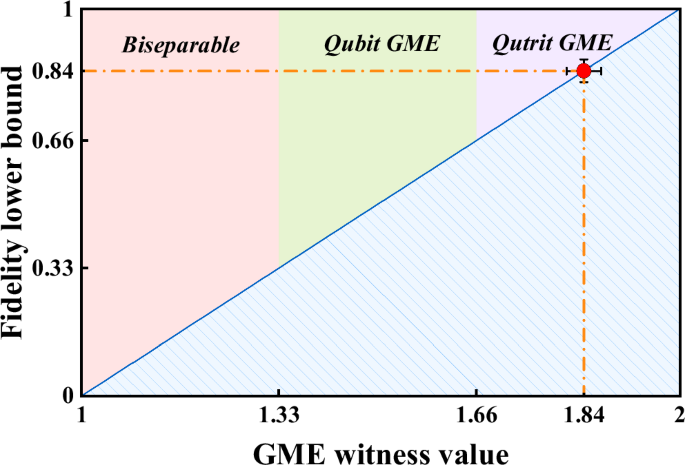

Fig. 3: Experimental results for 4-qutrit GHZ witness.

The GHZ-state fidelity of the experimentally produced state is shown as a function of the GME witness value W(ρ) given in (2) for qutrit systems. The red, green and purple regions correspond to biseparable states, two-dimensional GME and three-dimensional GME, respectively. The blue hatched region represents the fidelity lower bound F_GHZ≥ W − 1, which certifies the minimum fidelity achieved in our experiment. The red dot is the experimental result, based on a total of N_tot = 2404 counts. The statistical confidence in falsifying two-dimensional GME corresponds to a p-value on the order of 10⁻¹⁷ (details see Section 7 in the SM).

The two above reported entanglement witness tests prove that we have successfully prepared genuine high-dimensional multi-photon entangled states in our experiment.

Non-locality

Going beyond high-dimensional multi-partite entanglement detection, we now consider the possibility of experimentally observing high-dimensional multi-partite Bell correlations. Specifically, we set out to experimentally violate the chain of Bell-type inequalities given in Eq. (3) using three-qutrit GHZ states. The Bell operator requires us to measure nine global settings, each corresponding to a particular choice of input for the three photons, which we name {X, Y, W} respectively (details see Section 6 in the SM). We obtain ?=8.302±0.024, which is 54.3 standard deviations above the LHV bounds, 7 standard deviations above the (2,2,3)-bound and 3.2 standard deviations above the (2,3,3) bound, see (3). In this case, the estimation of the p values requires more counts than the GME witness to observe significant violations. Therefore, we recorded a total of 10,143 counts to achieve a p value < 10⁻² for the violation of the (2, 3, 3) inequality. The experimental data and violations are displayed in Fig. 4. These results represent our successful foray into the observation of genuine high-dimensional multi-partite quantum non-locality.

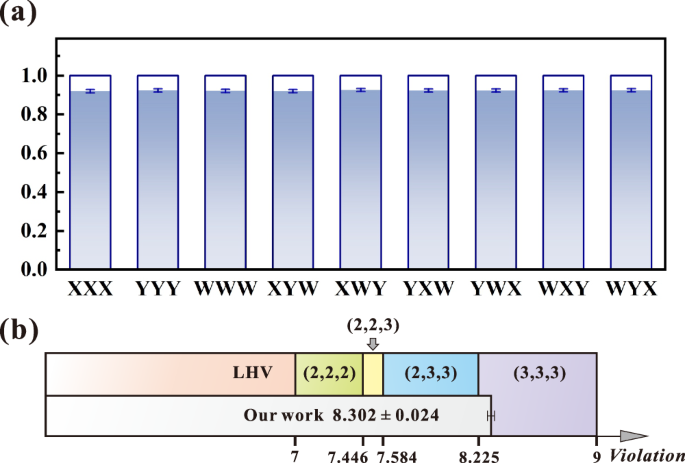

Fig. 4: Experimental results for high-dimensional multi-partite Bell inequality.

a Experimental results under different measurement bases. Here, X, Y, Z stands for three different project measurements on a single qutrit, and there are a total 9 sets of measurements for the Bell inequality. b Violation of the Bell inequality. The different colors represent different levels of violation of inequality. Our result violates the bounds of (2,3,3) and proves the existence of genuine high-dimensional multi-partite non-locality.

Discussion

Our experiment demonstrates the multi-partite Bell correlations strong enough to falsify the constraints of qubit-based quantum theory in non-locality experiments. This was possible thanks to the high GHZ-state fidelities achievable in our path-identity scheme. This experiment marks an initial advancement towards realizing device-independent quantum information processing in the high-dimensional and multi-partite system. For that purpose, future challenges will involve demonstrations of such non-locality while also closing the detection and/or locality loopholes, while also performing multi-outcome measurements. A natural further step is to consider nonlocality with more than three parties in high dimensions. While in the four-party case our setup achieves potentially sufficient fidelity, the test requires development of inequalities analogous to (3) that exhibit also significant noise-tolerance. Even for standard LHV models, little is known about such inequalities.

The visibility of HOM interference observed in the experiment is much higher than the fidelity of the state we successfully prepared. In principle, the quantum state we prepared can achieve higher fidelity. In the future, the use of better compensation techniques and stable structures will greatly improve the fidelity of our quantum state preparation, ensuring that the quantum state we prepared can be better utilized for various quantum information tasks and fundamental quantum physics problems⁵⁵. Our experimental platform has excellent scalability, which comes from the two-dimensional expansion of our photon pairs on a plane, and compared to one-dimensional expansion schemes, this scheme has higher path exchange efficiency⁵⁶. At the same time, the excellent indistinguishability of our light source and the high isolation of path switching ensure high-quality state preparation fidelity.

Most entanglements in the real world are in high-dimensional entanglement. The high-fidelity, high-dimensional multi-photon entangled states we prepare facilitate deeper insights into quantum physics²³, including the investigation of increasingly complex nonlocality models and the realization of quantum teleportation involving the complete information of individual particles. Our experimental platform is very suitable for implementing path identity schemes^46,47. Combined with high-dimensional Bell measurements^57,58, we can achieve the preparation of high-dimensional multi-photon GHZ states and graph states. These states can be utilized for high-dimensional quantum communication⁵³, quantum sensing⁵⁴, and quantum computing²⁷ with high noise resistance.
